UGN Instance Management

Create UGN Instance

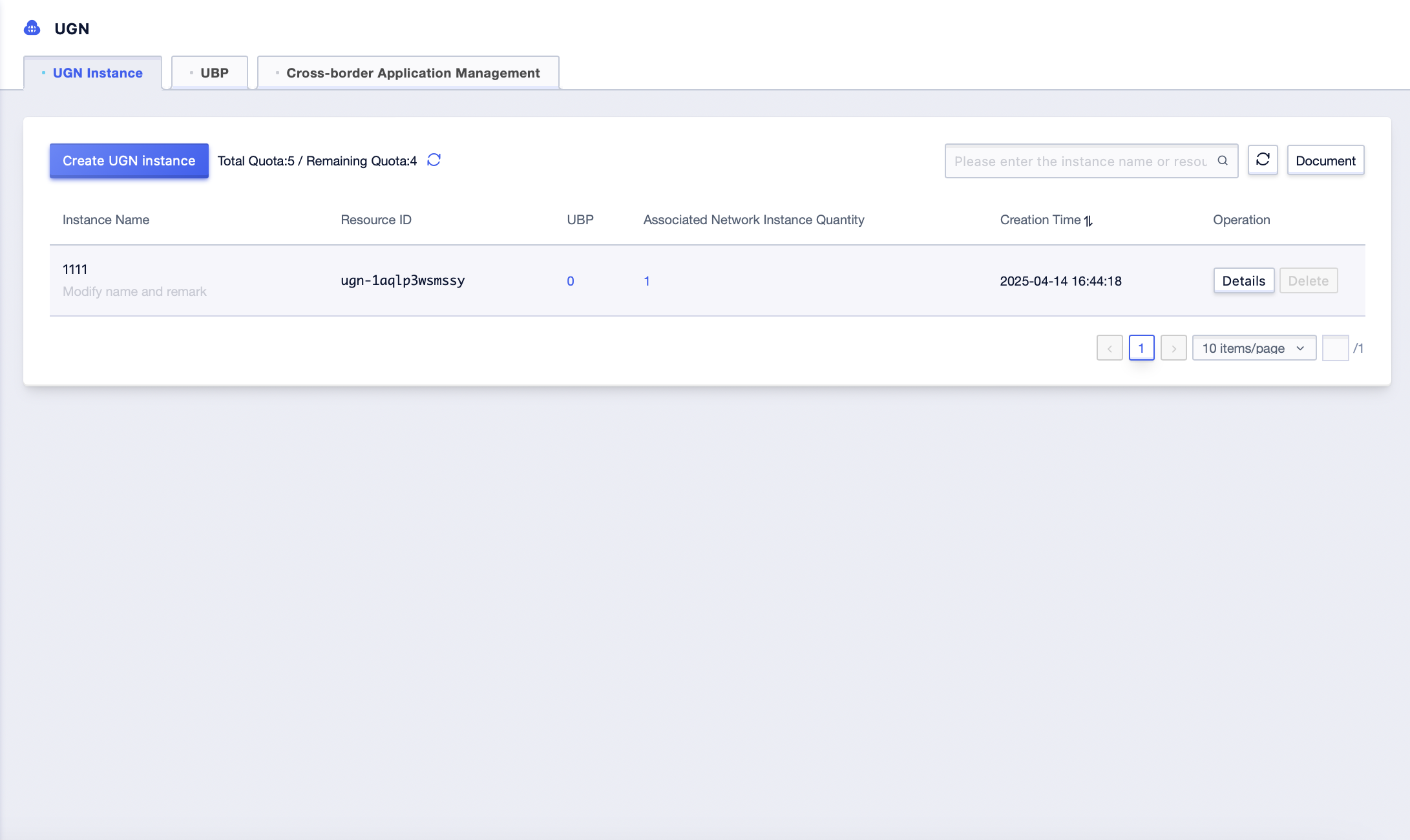

1. On the console, click [All Products] > [Network] > [UGN] > [UGN Instance] tab to enter the management interface.

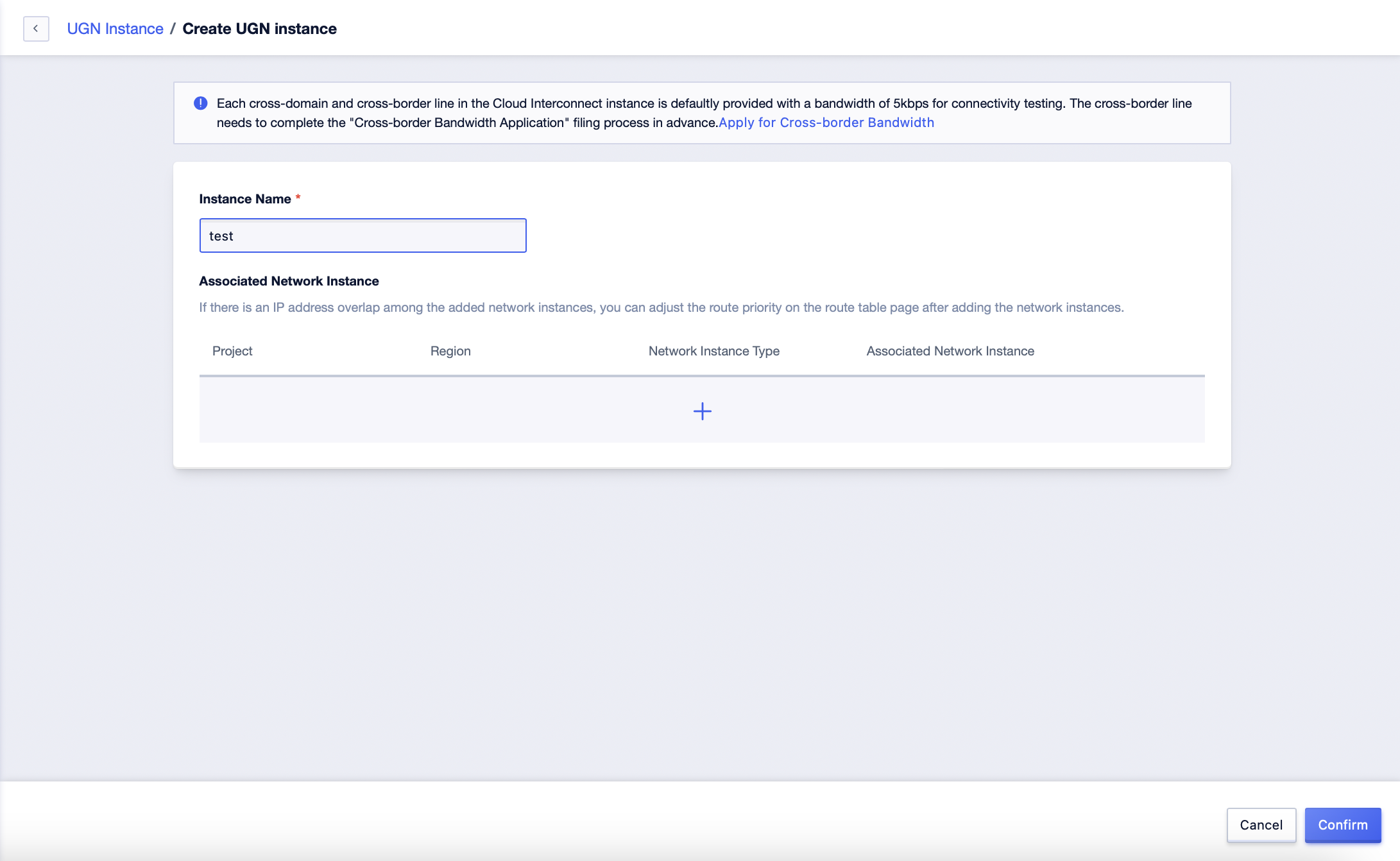

2. Click [Create UGN instance], enter the “Instance Name”, associate relevant network instances, and click [Confirm] to complete the creation.

“Associate network instances” is optional.

Edit UGN Instance Name

Click the [Edit] icon next to the instance name in the management list to access the editing interface.

Delete a UGN

Prerequisites
If the UGN instance has associated network instances, it cannot be deleted.

Steps

1. Click the [Delete] button in the management list.
2. Confirm the action twice to delete the instance.

Create a UGN via API

UGN supports API-based creation.

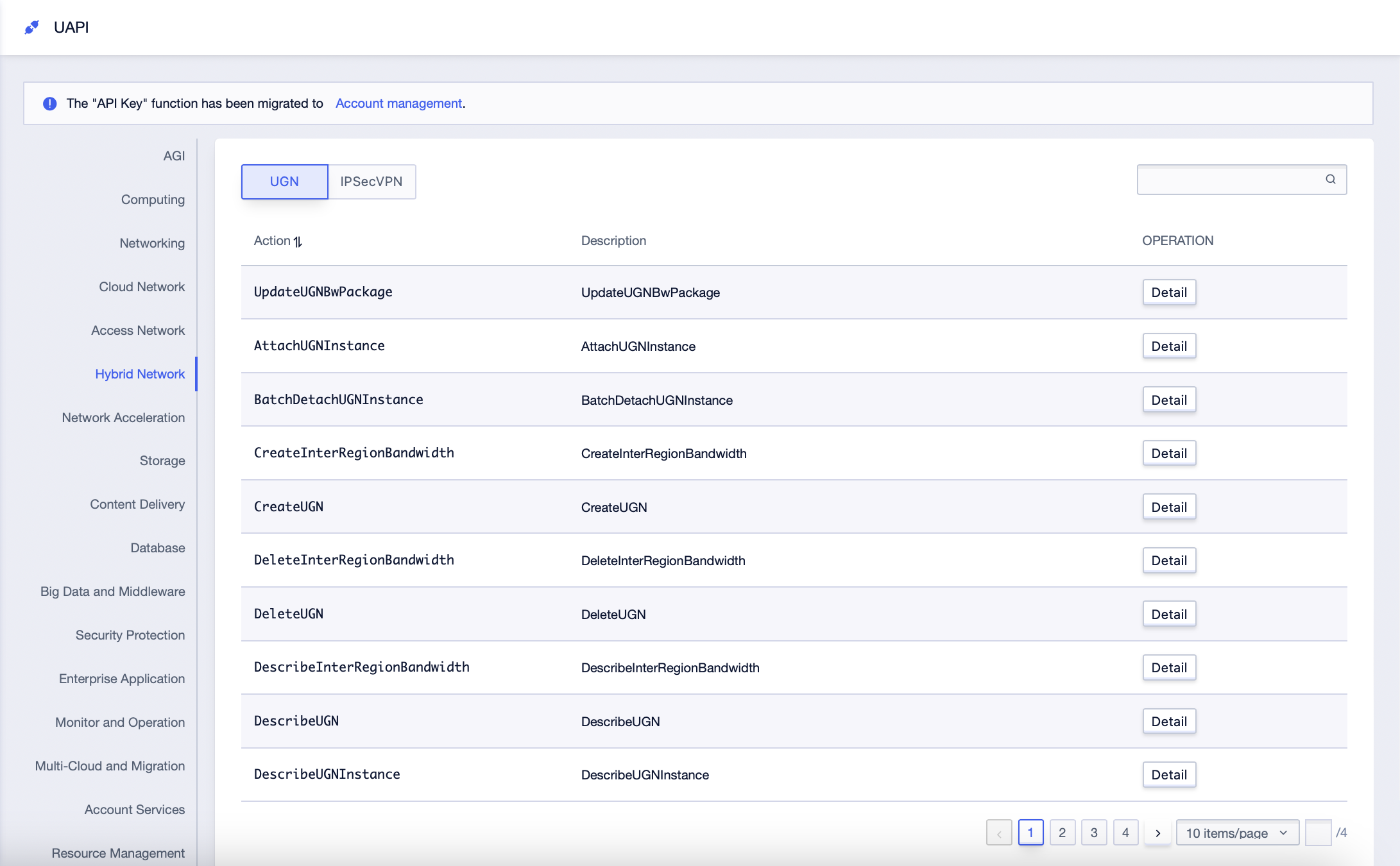

1. Navigate to the UAPI UGN creation interface:
   [Console] > [Monitor & Operation] > [UAPI] > [Hybrid Network] > [UGN].

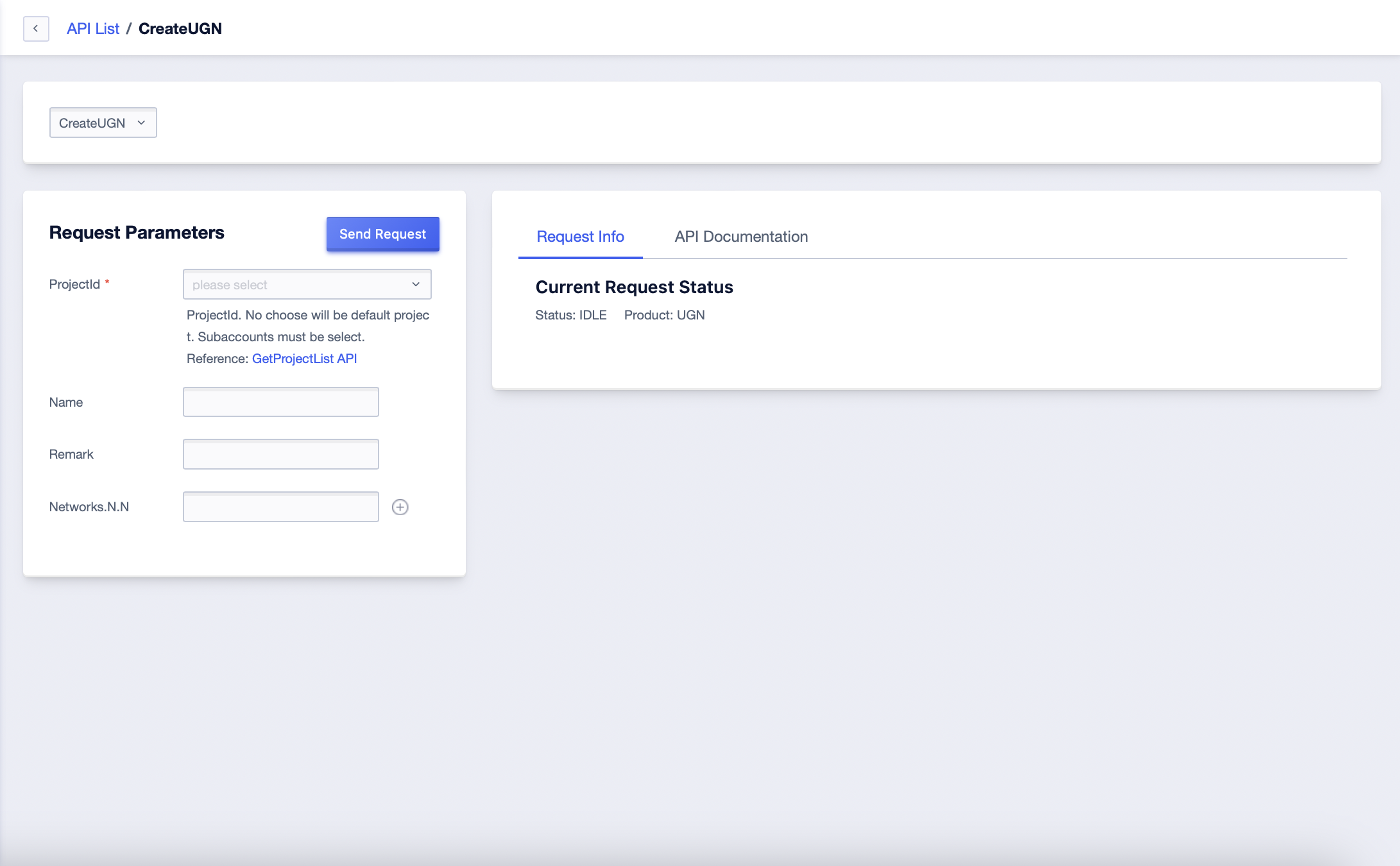

2. Create a UGN instance:
   • Click [CreateUGN] > [Details] for creating a UGN.
   • Enter parameters such as the instance name.
   • Click [Send Request] to complete the creation.
   • You can also associate network instances by entering relevant parameters here.
